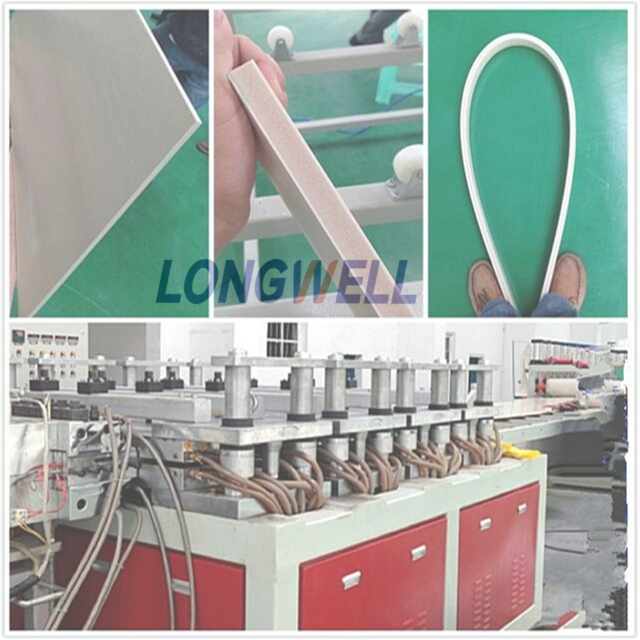

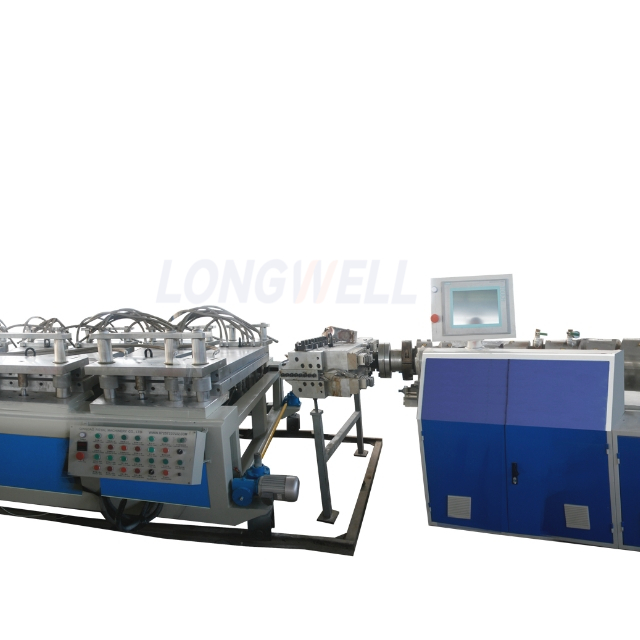

PVC Skinning (WPC) Foaming Board Extrusion Line
Transportation industrial: Ship, plane. bus, chamber of train,roofing, core layer,inner decoration board.
Construction and decoration industial: outer wall board, inner decoration board, housing, office, public construction board, furniture. cupboard, roofing. Adopting printing, film coating and thermo-embossing equipment, will get all kinds of emulational wooden product.
This extrusion line is made according to the features of free foamed board and skinning foamed board by using the extrusion system for free foamed board machine and the downstream equipment for skinning foamed board. The product produced by this machine has the features of smooth surface, low density, and the surface hardness of the product is between the skinning foamed board and free foamed board. The investment of this machine is close to the investment of free foamed board extrusion line, which makes it easy for market promotion.
PVC/WPC Semi-Skinning Foaming、Core Foaming Board Line
Machine information:
| Name |
| Qty | Main Motor power |
1 | SJSZ80/156 Extruder | For inner foam layer | 1 set | 70kw |
2 | SJSZ65/132 Extruder | For outer rigid skinning | 1 set | 37kw |
3 | Mould | 5 – 25mm thickness | 1 set |
|
4 | Calibration unit | 8000mm in length | 1 set |
|
5 | Haul-off unit |
| 1 set |
|
6 | Cutting unit |
| 1 set |
|
7 | stacker |
| 1 set |
|
