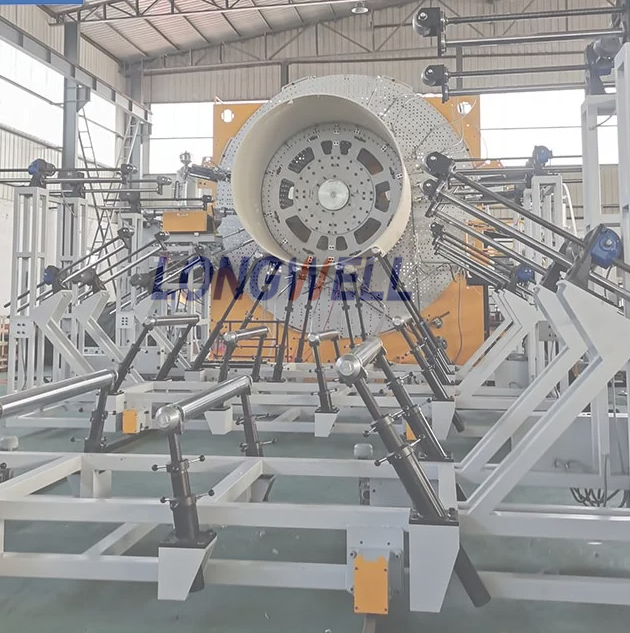

HDPE/PP/PPH Spiral wound Tank Extrusion Line
HDPE/PP/PPH spiral winding/Wound storage pipe tank equipment / extrusion production machine is different from the production method of the traditional gas fire baking mandrel production process(Krah pipe technology). The PPH /HDPE/PPHstorage tank body produced is one-time spiral winding forming without welding seams.the thickness is 8-100mm. This line include 2 sets of sheet single-screw extruders, sheet molds, 1set of spiral winding forming system, water-cooled and air-cooled systems, infrared heating systems, cutting machines, multiple sets of electric support brackets.
Advantages:
1. No gas Pre-heat,Energy saving.
2. No need multiple sets of steel mandrel, less investment.
3. No need gas fire
4. Energy saving and environmental protection
5. Save investment and quickly pay back
Application fields:
PPH/HDPE/PPH storage tanks are widely used in chemical, fuel, chemical fiber, metallurgy, textile and other industries to store various corrosive media, chemical storage tanks, spray towers, etc.
Main Feature of Spiral Wound HDPE Tank Machine
HDPE spiral wound tank diameter: DN/ID 600 mm up to DN/ID 5000 mm
HDPE spiral tank length: 6 to 9 m
Wall thickness: 120mm(Max)
Material: PP-HM, PP-B, PP-H, HDPE, PVDF
Output: 300-800kg/h
Application:chemicaltank,storagetank,spray scrubber,scrubbing column, sprial reaction vessal, water tank, spiral reactor vessal, chemical fumes tower, chemical reactor。
