PVC Pipe Extrusion Line

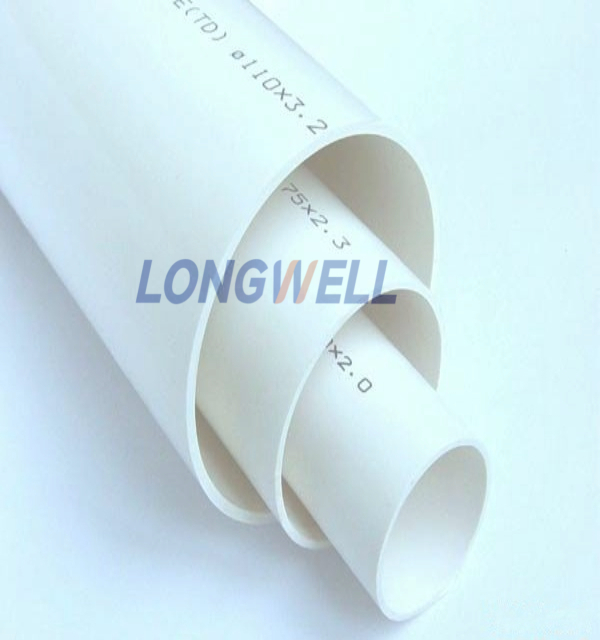

Application: PVC pipe extrusion lines are suitable for producing all kinds of water supply pipe, drainage pipe, electrical conduits and other PVC pipes.

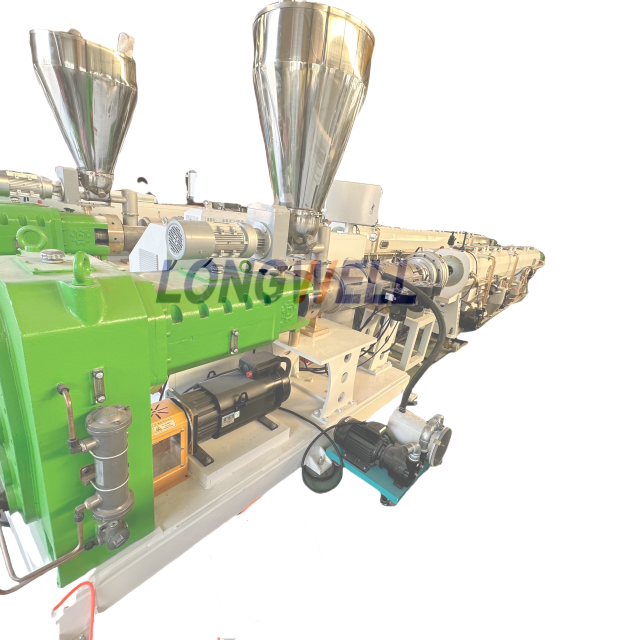

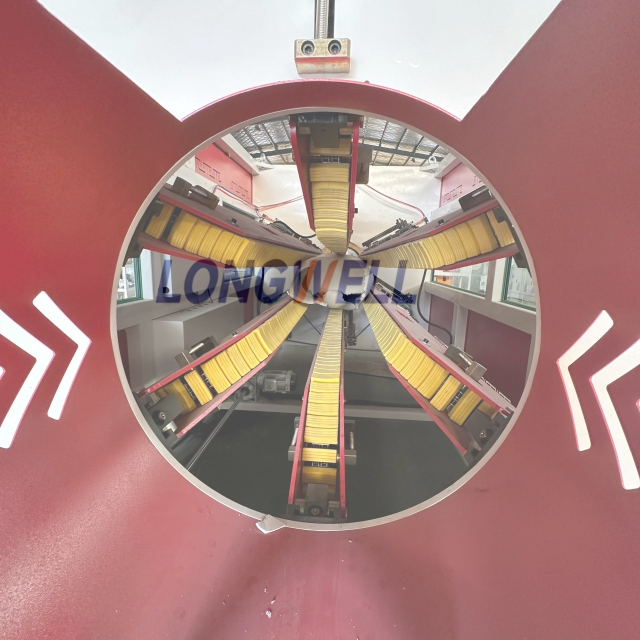

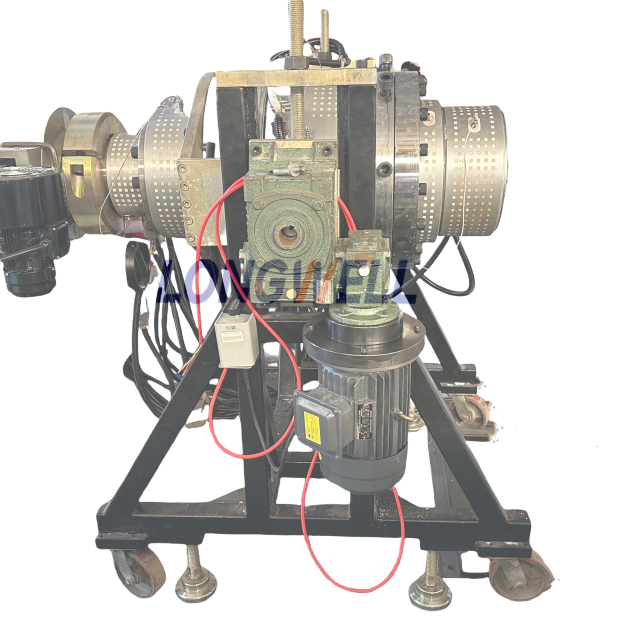

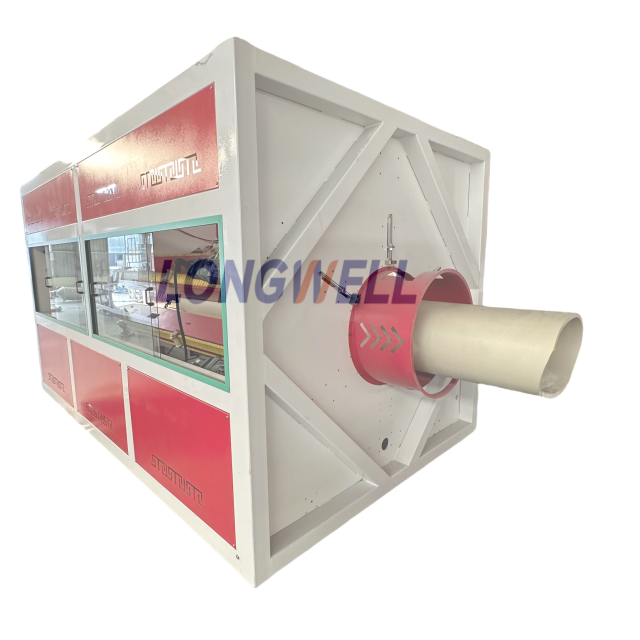

Features and advantages: This series of extrusion lines can produce the pipe of max 800mm diameter, the extruders of which include SJZ-Conical Twin-screw extruder and YPS-Asynchronous Parallel-screw extruder. The haul-off machine has two pedrails type, triple pedrails type, four pedrails type, six pedrails type and eight pedrails type, and the cutter has annular cutting type and planetary cutting type. We also supply various dies for customers.
The Main Technical Parameters:
Diameter mm | Extruder | Max Output kg/h | Total Power kw |
Ø16-Ø40 | SJZ51/105 (double cavities) | 90-160 | 60 |
Ø16-Ø63 | SJZ65/132 (double cavities) | 180-220 | 104 |
Ø63-Ø160 | SZJ65/132 | 180-220 | 100 |
Ø75-Ø250 | SZJ65/132 | 180-220 | 110 |
Ø200-Ø315 | SJ80/156 | 260-330 | 180 |
Ø200-Ø450 | SJ80/156 | 450-500 | 245 |
Ø315-Ø630 | SZJ92/188 | 650-750 | 350 |
Ø400-Ø800 | SJP130/26 | 1000-1300 | 420 |
