Application：

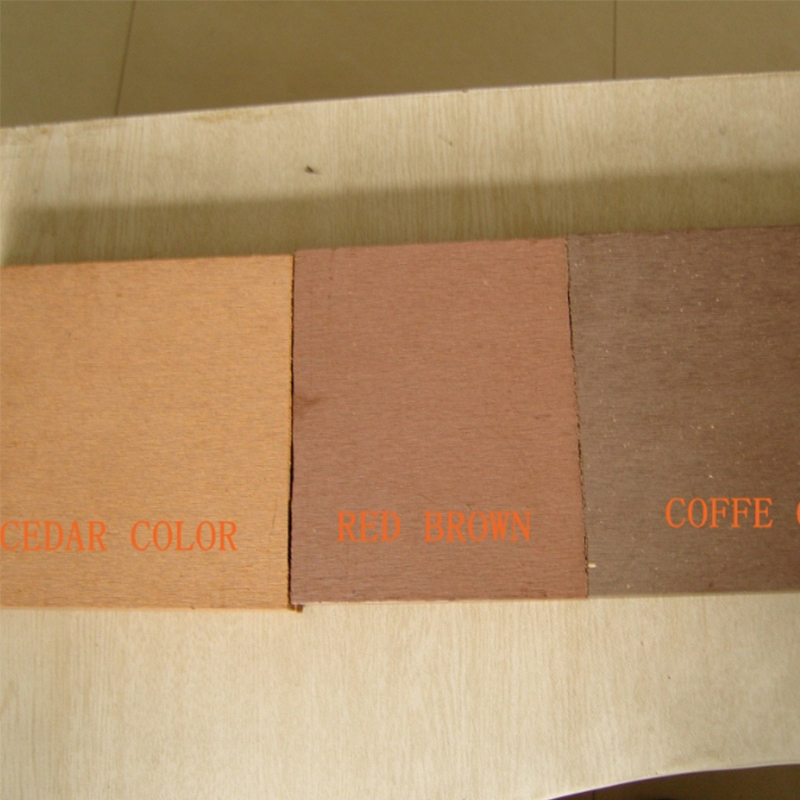

Sand the surface of WPC profile flat and has much friction.
Production Process：
Feeding and sanding.
Machine information:

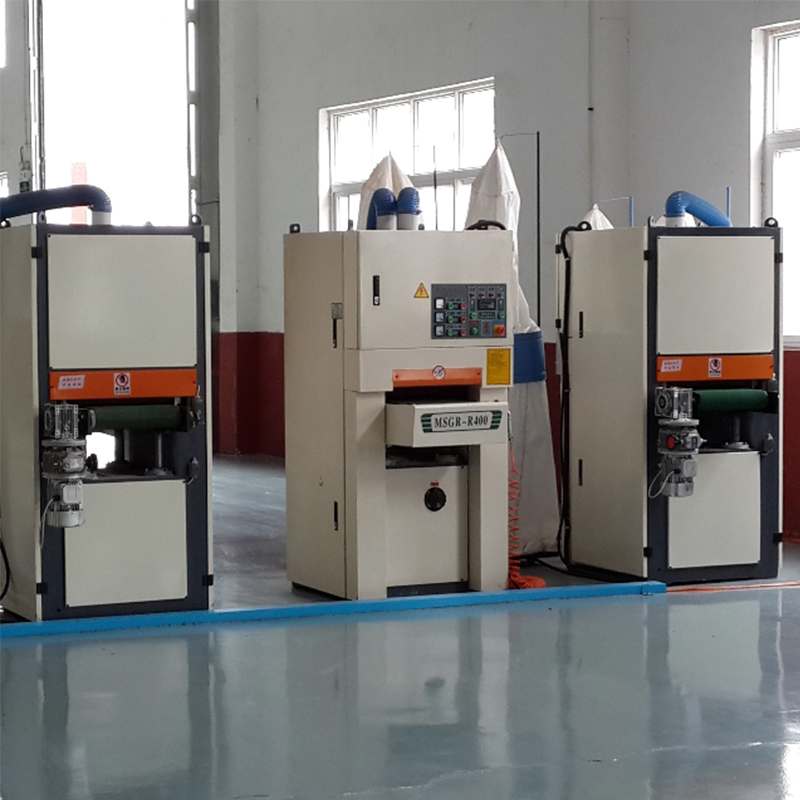

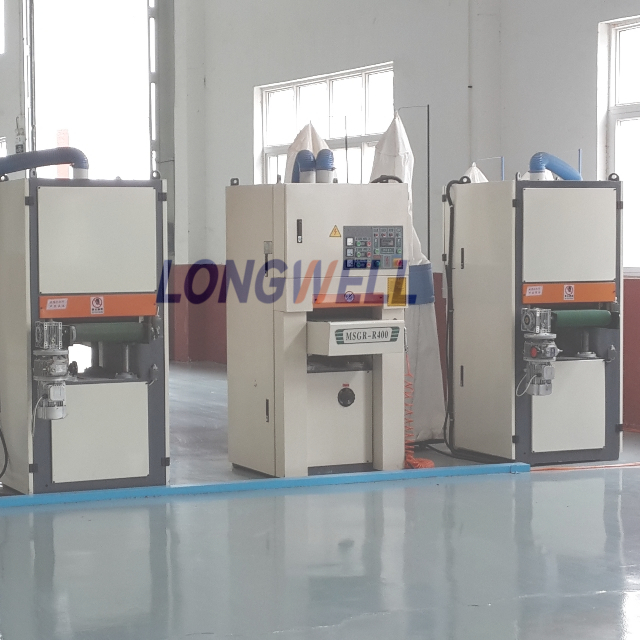

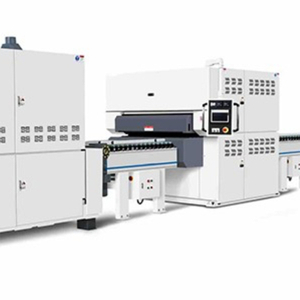

I. D400 Sanding machine with upper belts - 1 set
|
Name |
Data |
Note |
1 |
Maximum processing width |
400mm |
|
2 |
Processing height |
3-160mm |
|
3 |
Processing length |
≥260mm |
|
4 |
Sanding belt size |
420mm×1560mm |
|
5 |
Sanding belt model |
#40, #40 |
|
6 |
Sanding belt speed |
14m/s |
|
7 |
Swing head |
Electrical control |
|
8 |
Feeding speed |
Inverter |
1.5KW motor |
9 |
Working air pressure |
≥0.55MPA |
|
10 |
Bearing |
TR |
|
11 |
Sanding roller |
Front steel roller, back rubber roller |
Diameter: Φ145mm |
12 |
Sanding belt motor |
5.5kw + 5.5kw |
|
13 |
Optoelectronic switch |
Autonics |
220V |
14 |
Feeding platform |
4 m |
2 pcs |
II. D400 Sanding machine with lower sanding belts- 1 set
|
Name |
Data |
Note |
1 |
Maximum processing width |
400mm |
|
2 |
Processing height |
3-160mm |
|
3 |
Processing length |
≥260mm |
|
4 |
Sanding belt size |
420mm×1560mm |
|
5 |
Sanding belt model |
#40, #40 |
|
6 |
Sanding belt speed |
14m/s |
|
7 |
Swing head |
Electrical control |
|
8 |
Feeding speed |
Inverter |
1.5KW motor |
9 |
Working air pressure |
≥0.55MPA |
|
10 |
Bearing |
TR |
|
11 |
Sanding roller |
Front steel roller, back rubber roller |
Diameter: Φ145mm |
12 |
Sanding belt motor |
5.5kw + 5.5kw |
|
13 |
Optoelectronic switch |
Autonics |
220V |
14 |
Feeding platform |
4 m |
1 pc |
